TRS100R | Mersen Class RK5 Time-Delay Fuse 100A 600VAC
TRS100R | Mersen Class RK5 Time-Delay Fuse 100A 600VAC

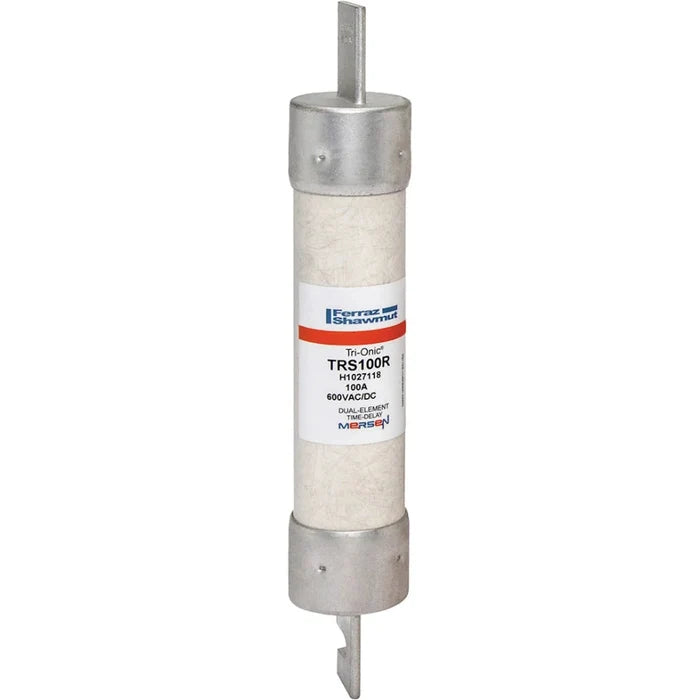

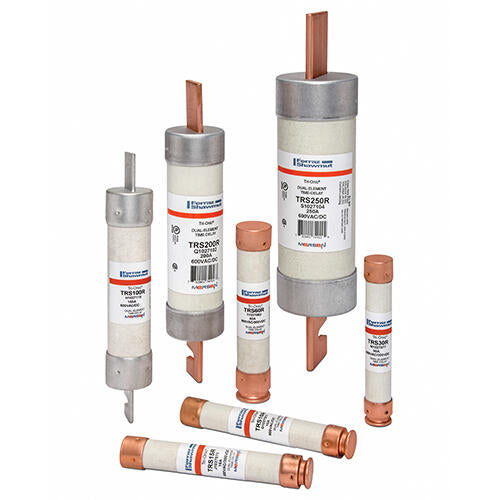

The TRS100R fuse from the Tri-Onic® TRS-R series is a Class RK5, time-delay, current-limiting fuse designed for the protection of motors, transformers, feeders, and branch circuits. With a 100A rating and compatibility for both 600V AC and 600V DC systems, this fuse is ideal for applications requiring reliable performance under high inrush or starting currents.
Its time-delay feature allows harmless temporary overcurrents while providing superior protection against sustained overloads and short circuits. The TRS100R fuse features blade-style terminals and mounts with clip-type holders. Trusted for industrial and commercial settings, it meets UL and CSA requirements for Class RK5 fuses.
Specifications
| Item Number | TRS100R |
| Fuse Class | Class RK5 |
| Type | Time-Delay |
| Ampere Rating | 100 A |
| Voltage Rating | 600 VAC / 600 VDC |
| Interrupting Rating (AC) | 200 kA |
| Mounting Type | Clip |
| Terminal Type | Blade |

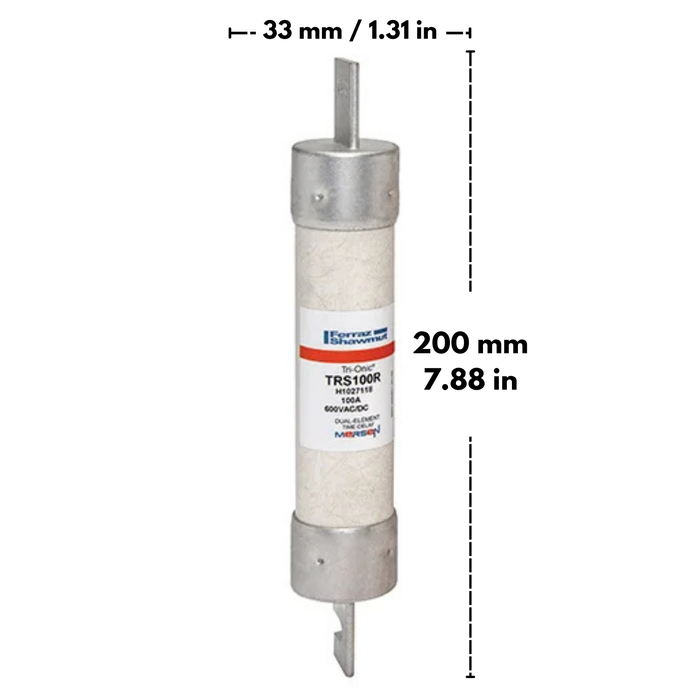

| Product Diameter | 33.4 mm |
| Product Length | 200.2 mm |
| Frequency | 50/60 Hz |
| Standards | UL Listed, CSA Certified |
Documents
- TRS100R_Drawings.pdf
- TR-R-TRS-R-Class-RK5-Time-Delay-Mersen.pdf
- Manufacturer Product Page TRS100R
