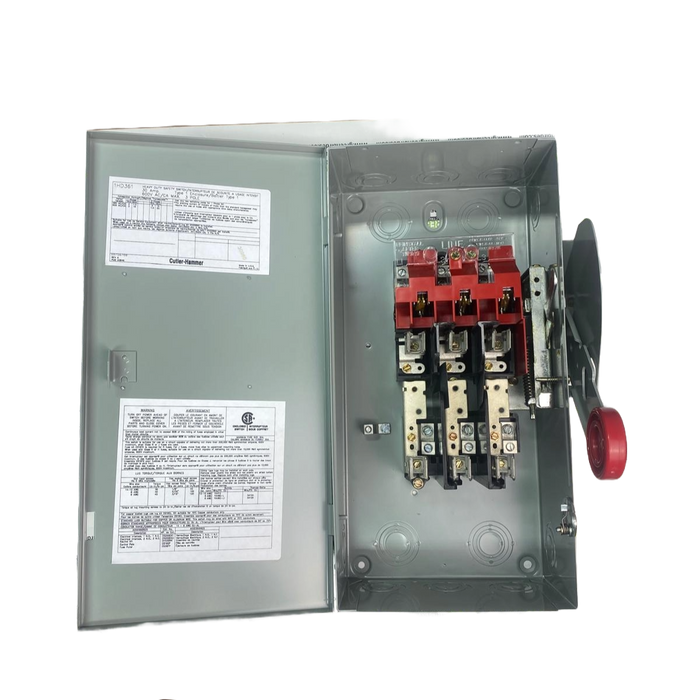

Eaton 1HD361 Disconnect, 30 Amp, 3 Pole, 600V, Fusible, NEMA 1
Eaton 1HD361 Disconnect, 30 Amp, 3 Pole, 600V, Fusible, NEMA 1
Product Description
The Eaton 1HD361 Disconnect is a heavy-duty safety switch designed for reliable performance in commercial, institutional, and industrial environments. This fusible, single-throw safety switch provides dependable circuit protection with a 30 Amp capacity and is rated for 600 VAC and 250 VDC. Its painted steel enclosure is rated NEMA 1 for indoor use, making it ideal for various indoor applications.
Key Features:
- 30 Amp, 3 Pole configuration for versatile use
- Heavy-duty, fusible, single-throw design for enhanced safety
- Compatible with Class H fuses for circuit protection
- NEMA 1 painted steel enclosure for indoor applications
- Rated for 7.5 HP at 480V (1-phase) and up to 20 HP at 600V (3-phase)
- Compact design for easy installation: 8.13 in W x 9.89 in D x 15.88 in H
Specifications
| Brand | Cutler-Hammer (Eaton) |
| Model | 1HD361 |
| Type | Heavy Duty, Fusible, Single Throw |
| Voltage Rating | 600 VAC, 250 VDC |
| Amperage Rating | 30 Amp |
| Load Rating | 7.5 HP at 480 VAC (1-Phase), 10 HP at 600 VAC (1-Phase), 15 HP at 480 VAC (3-Phase), 20 HP at 600 VAC (3-Phase) |
| Number of Poles | 3 |
| Fuse Type | Class H |
| Housing Material | Painted Steel |
| Enclosure Rating | NEMA 1 (Indoor Use) |
| Dimensions | 8.13 in W x 9.89 in D x 15.88 in H |
| Application | Commercial, Institutional, Industrial |
Documents
For additional details, download the product documentation below:
- Spec Sheet - Eaton 1HD361 Disconnect
