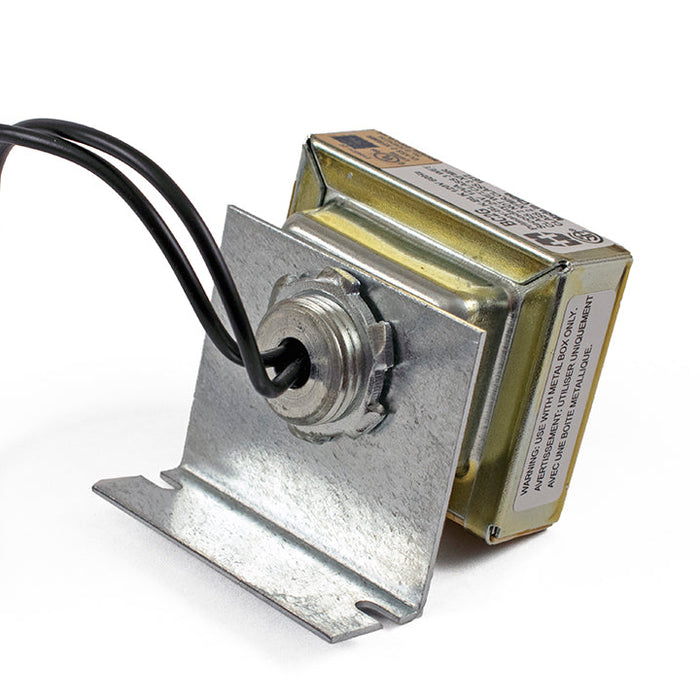

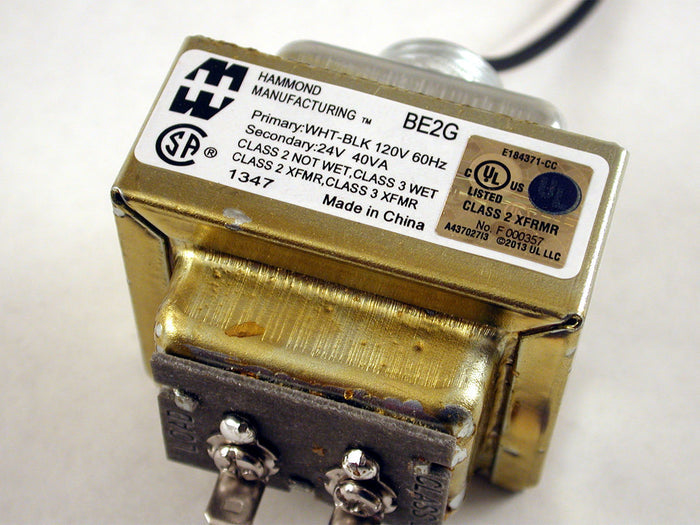

BE2G | Hammond Transformer, Class 2, 24V, 40VA
$20.80
Sale price
$20.80
Regular price
$32.00
The Hammond BE2G Transformer is a reliable and efficient solution designed for various applications, including chimes, doorbells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, and intercom systems. Engineered for rugged, low-noise, and cool-running performance, this transformer is ideal for indoor use.
Product Features
- Ideal for multiple applications, including security systems, doorbells, and appliances
- Low-noise and cool-running design for reliable performance
- Indoor use only with a rugged, durable build
- Stripped wire input and screw terminal/quick fit tab output for easy connections
- Nipple locknut mount for secure box installation
- Inherently limited - no fuses or circuit breakers required
- UL listed and CSA certified for safety compliance
Specifications
| Manufacturer | Hammond Manufacturing | Series | BE |
| Part Status | Active | Type | Laminated Core |
| Voltage - Primary | 120V | Voltage - Secondary (Full Load) | 24V |
| Current - Output (Max) | 1.67A | Power - Max | 40VA |
| Primary Winding(s) | Single | Secondary Winding(s) | Single |
| Center Tap | No | Mounting Type | Chassis Mount |
| Termination Style | Wire Leads, Quick Connect | Size / Dimensions | 59.18mm L x 66.04mm W |
Documents
- https://www.hammfg.com/electronics/transformers/class-2/ba-c-d-e.pdf
