TRIAC Dimmable LED Driver, Class 2, 24VDC
24W
$25.28
Sale price
$25.28
Regular price
$32.00
Skip to product information
TRIAC Dimmable LED Driver, Class 2, 24VDC
$25.28
Sale price
$25.28
Regular price
$32.00

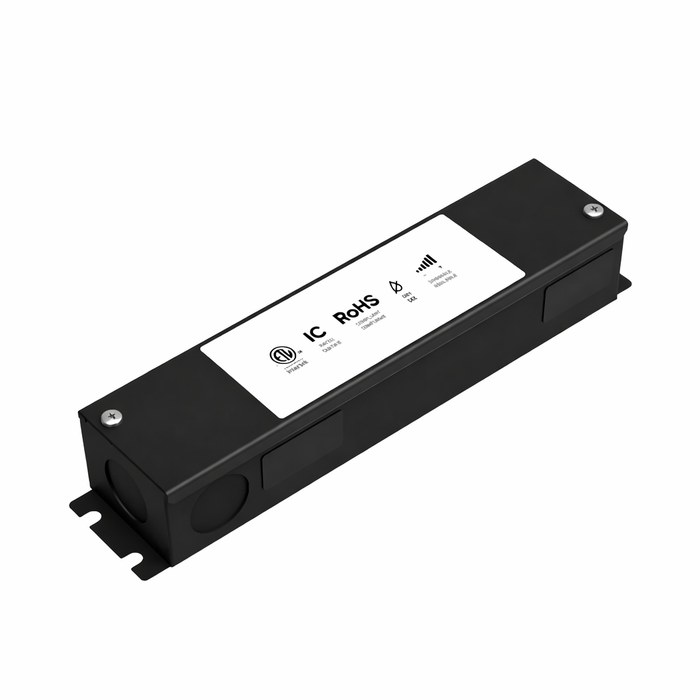

The Triac Dimmable LED Driver is a high-performance Class 2 constant voltage power supply engineered for residential and commercial LED lighting systems. Designed for dry locations and built with short-circuit and overload protection, this driver ensures consistent, flicker-free performance across a range of dimming systems, including ELV, MLV, and TRIAC controls. Available in multiple wattage variants (24W, 40W, 60W, 96W), it is the ideal solution for LED strip lights, under-cabinet lighting, and architectural applications.
Highlights
- Dimmable: Compatible with ELV, MLV, and TRIAC electronic dimmers
- Constant Voltage Output: 24V DC for stable LED performance
- Short Circuit Protection: Built-in safety against overload and overcurrent
- Dry Location Rated: Ideal for indoor residential and commercial use
- Multiple Power Options: Available in 24W, 40W, 60W, and 96W configurations
- High Efficiency: Reliable and energy-efficient LED power conversion
Specifications
| Input Voltage | 120V AC, 60Hz |
|---|---|
| Output Voltage | 24V DC Constant Voltage |
| Power Options | Available in: 24W / 40W / 60W / 96W / 150W / 188W / 192W / 288W |
| Dimming Type | ELV / MLV / TRIAC Electronic Dimmable |
| Class Rating | Class 2 Power Supply |
| Frequency | 60Hz |
| Location Rating | Dry Location |
| Applications | LED strip lighting, cove lighting, under-cabinet lighting, signage, and architectural LED systems |
