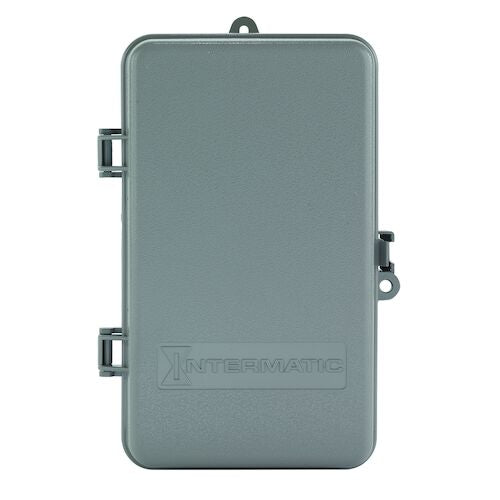

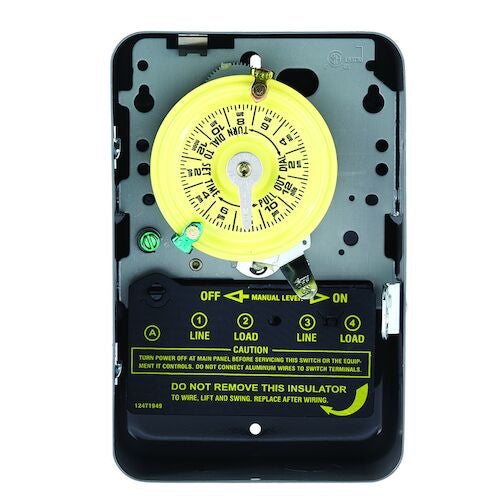

24-HOUR MECHANICAL TIME SWITCH, 208-277 VAC, 60HZ, DPST, INDOOR METAL ENCLOSURE, 1 HOUR INTERVAL
The Intermatic T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Technical Specifications
| Finish | GRAY |
|---|---|
| Approval | CSA (CANADA AND US), CSA C22.2 |
| Application | INDOOR/OUTDOOR LIGHTING, POST LANTERN, SIGN, POOL HEATER, FILTER, HYDROCHLORINATOR, AIR CONDITIONING, BLOWER, ELECTRIC FENCE, PUMP, HEATING/VENTILATING SYSTEM, MUSIC AND SIGNAL SYSTEM, FAN, POULTRY FOGGER, CONVEYER |
| Size | 5 INCH W X 3 INCH D X 7 3/4 INCH H |
| Voltage Rating | 208 TO 277 VAC AT 60 HZ |
| Current Rating | 40 AMPERE (RESISTIVE/TUNGSTEN) |
| Operating Temperature | -40 TO 130 DEG F |
| Enclosure | NEMA 1 |
| Power Rating | 5 HP AT 240 VAC SINGLE PHASE (28 FLA), 1000 VA (PILOT DUTY) |
| Mounting | WALL |
| Switch Type | DPST |
| Max Number of Operations | 12 |
| Reserve Power | NO |
| Min On Time | 1 |
| Min Off Time | 1 |
| Minimum On Time | 1 |
| Minimum Off Time | 1 |
