JTD250 | Littelfuse Class J Time-delay Fuse, 200A 600VAC
$134.16
Sale price
$134.16
Regular price
$172.00

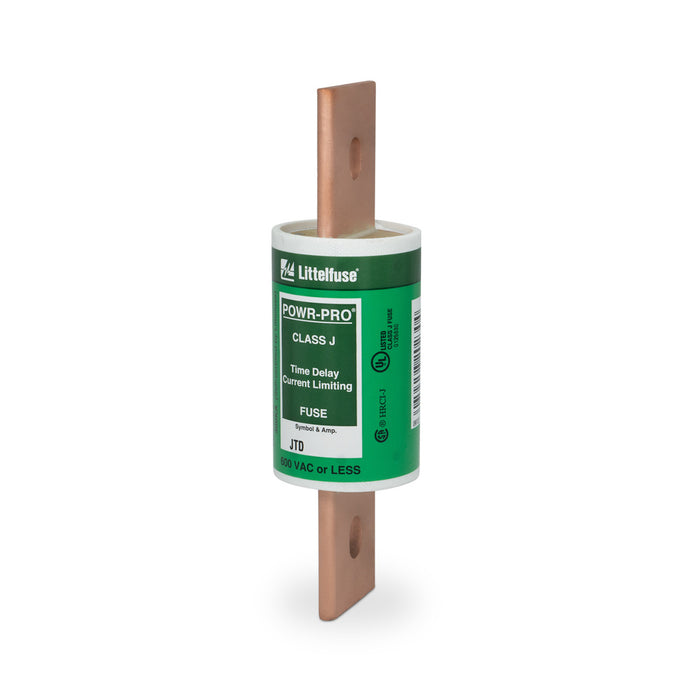

JTD250 is a Class J fuse with an ampere rating of 250 and knife-blade style construction.
Applications
• Motor control centers
• Fused combination motor controllers
• Transformers
• UL listed series-rated molded case circuit breaker panels
• General purpose circuits
Specifications
| Item Number | JTD250 |
| EAN/UPC Code | 07945820231 |
| Rated Voltage (AC) | 600 V |
| Rated Voltage (DC) | 500 V |
| Frequency | 50/60 Hz |
| Ampere Rating | 250 A |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| Breaking Capacity (AC) | 200 kA |
| Connection Type | Blade, Brass |
| Body Material | GMG |
| Product Diameter | 54 mm |
| Product Length | 181.1 mm |
| Weight | 0.8119 kg |
Documents
- JTD Datasheet
