ITC 401.201 1-pole fuseholder for midget fuse - PMX
$4.20
Sale price
$4.20
Regular price
$7.00
Skip to product information
ITC 401.201 1-pole fuseholder for midget fuse - PMX
$4.20
Sale price
$4.20
Regular price
$7.00
Replaces ITC part number 400.201
| Product Packaging | 12 |
| Catalog |  |
| Certification | CSA, cURus |
| Ingress Protection | IP20 (with wire > 10AWG/6mm2 or with IP20 protection accessory) |
| Weight | 57g per pole |
| Pollution degree: | 3 |
| Storage temperature | -40?C to +80?C |
| Nominal Tightening Torque | 2.5 Nm / 22 lb.in Use flat screwdriver 5-6mm or Philips |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Power dissipation | 3W |
| Nominal Wire Section | 18-8AWG (0.75-16mm2) solid wire / stranded wire (Cu only) |
| Maximum Fuse Rating | 30A |
| Rated Voltage | 750V |
| Rated Current | 32A |

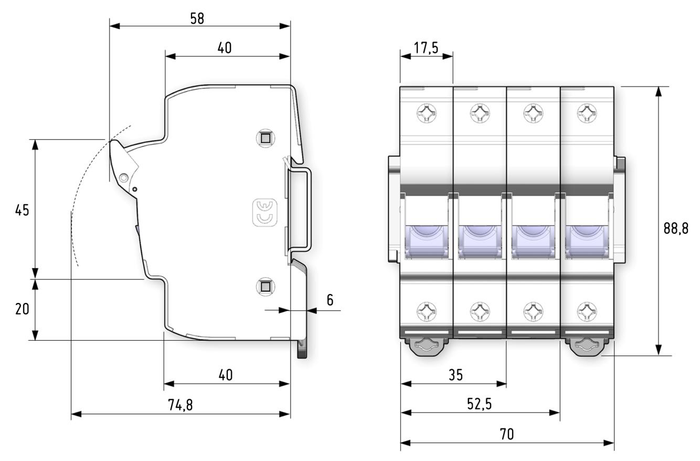

| Height, open mm | 74.8 |
| Height, closed mm | 58 |
| Width mm | 17.5 |
