Dimensions
Hubbell HBL1379D Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC
$53.46
Sale price
$53.46
Regular price
$81.00

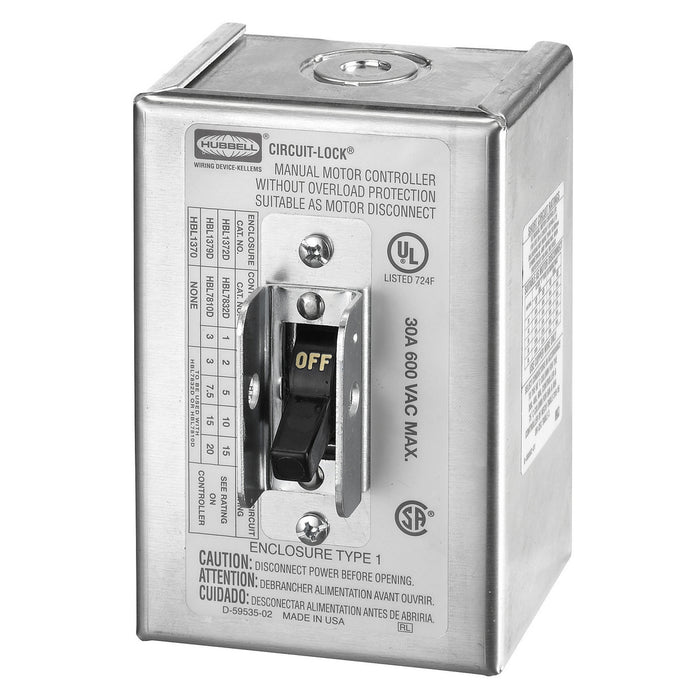

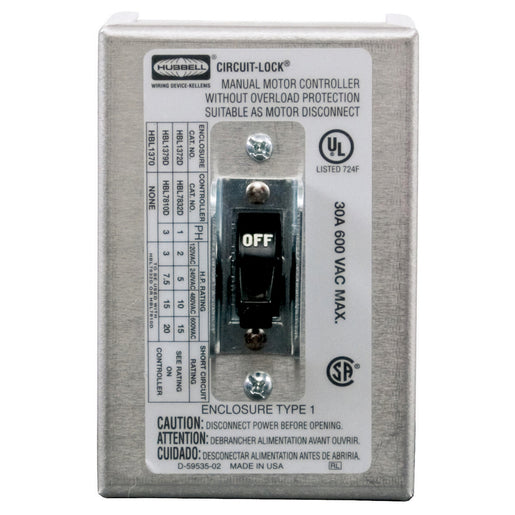

Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Aluminum
- All aluminum cover and base
- Base is pre-drilled for rear surface mounting
- Wiring conduit knockouts
- ½" and ¾" NPT
- Top, bottom or back wire entry points
- Surface mount control
- Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
Product Details
General
| Application | Standard Toggle |
| Enclosure Type | NEMA 1 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 15 |
| Load Capacity | Inductive |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Cycles | 10,000 Cycles Minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Non-Fused |
| Style | Standard Duty |
| Type | Disconnect Switches |
| UPC | 783585202617 |
Dimensions
| Dimensions | 4.52 in x 3.2 in x 3.15 in |
| Display Size | Standard Sized Product |
| Height | 3.15 in |
| Length | 4.52 in |
| Weight | 1.05 lb |
| Width | 3.2 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Phase | Three Phase |
| Wattage | 18000 |
Certifications and Compliance
| Industry Standard(s) |
|
