HBL13R89D
$116.80
Sale price
$116.80
Regular price
$146.00
Skip to product information
General
HBL13R89D
$116.80
Sale price
$116.80
Regular price
$146.00

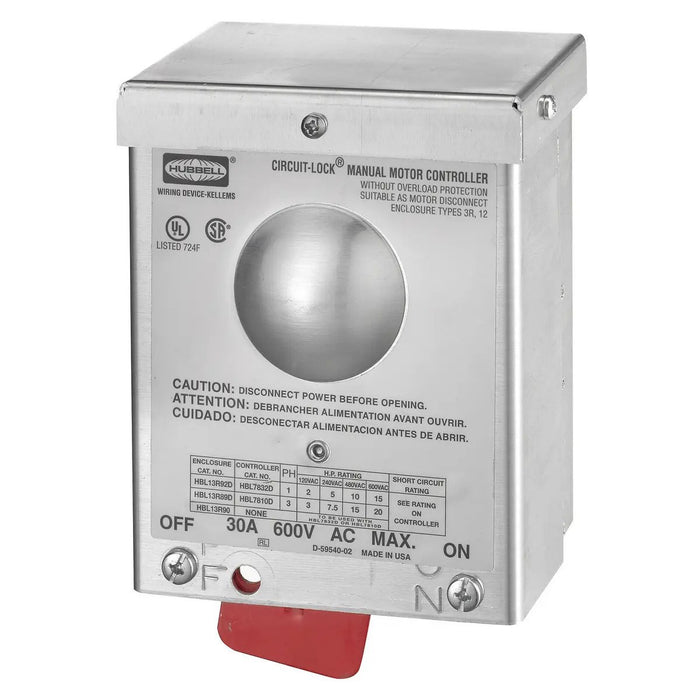

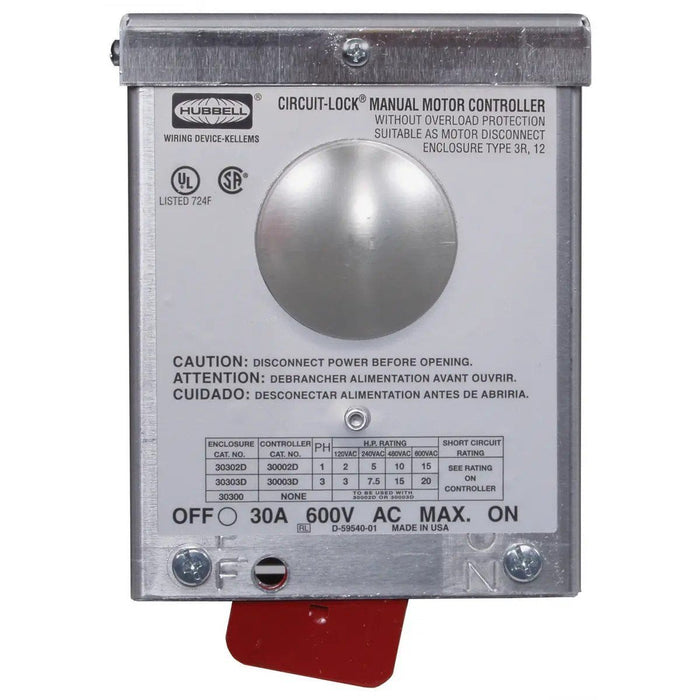

Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch
- Optional Side Guard for close wall applications
- Clamping plate for secure back or side wiring
- Thermoset body provides resistance to electrical arc tracking
Product Details
General
| Application | Red Slide |
| Enclosure Type | NEMA 3R |
| Environmental Conditions | Indoor and Outdoor |
| Horsepower - Maximum | 20 |
| Load Capacity | Inductive |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Cycles | 10,000 Cycles Minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series | Non-Fused |
| Style | Standard Duty |
| Type | Disconnect Switches |
| UPC | 783585202686 |
Dimensions
| Dimensions | 5.52 in x 4.4 in x 3.3 in |
| Display Size | Standard Sized Product |
| Height | 3.3 in |
| Length | 5.52 in |
| Weight | 1.55 lb |
| Width | 4.4 in |
Electrical Ratings
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Current Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Phase | Single Phase |
| Wattage | 18000 |
Certifications and Compliance
| Industry Standard(s) |
|
