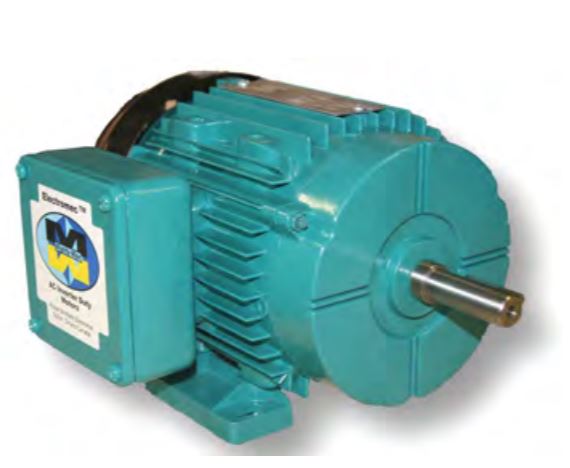

FA054

MIGHTYMAX THREE PHASE 56 FRAME, TOTALLY ENCLOSED FAN COOLED

• 208-230/460V, 1.15 SF; also rated for 50Hz at 1.0 SF on nameplate (50Hz, 190/380V)

• NEMA Design B • Class F Insulation System - Materials are Class H (180 C) except for leads (Class F)

• 2000V Spike Resistant Windings • 5:1 Constant Torque Speed Range, 10:1 Variable Torque Speed Range • 90º Rotatable oversized conduit box

• Stainless steel nameplate

• Voltage - 230/460V (Useable on 208V), 575V

• IP55 Degree of Protection • Class 1, Division 2, Group A, B, C, D

• Gasketed conduit box

• C Face models have removable feet

• F1 Standard - F0 or F2 by changing position of feet
