EV-14-50-R | NEMA 14-50R EV Receptacle, 50A, Outdoor Enclosure
$33.81
Sale price
$33.81
Regular price
$49.00

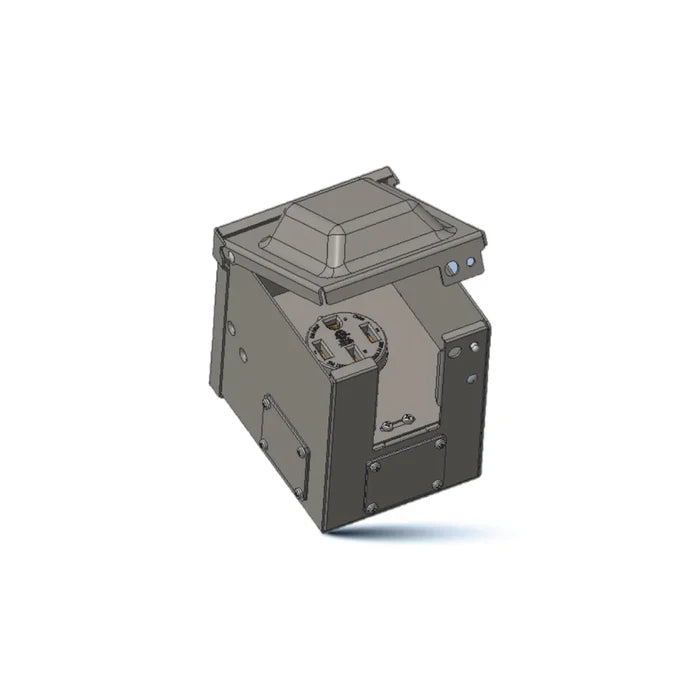

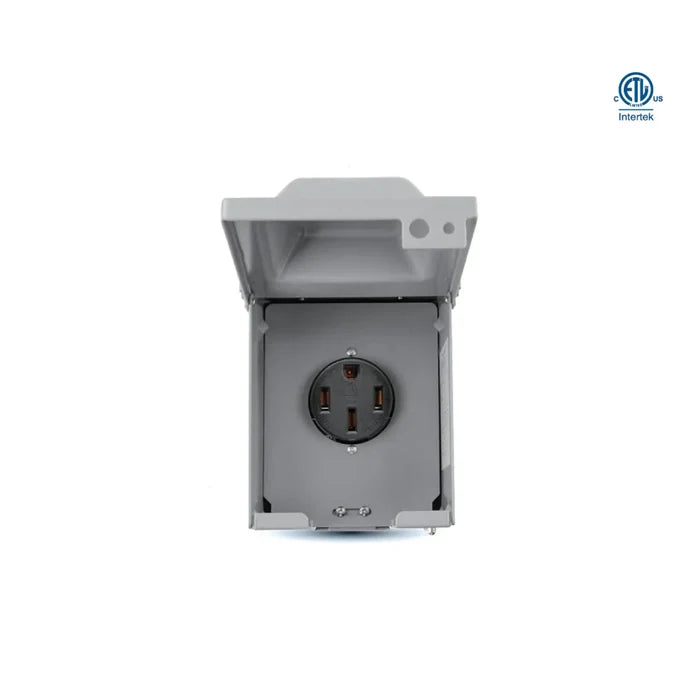

Ortech EV-14-50-R is a heavy-duty NEMA 14-50R receptacle housed in a rugged metal enclosure. Ideal for high-power applications such as EV charging, RV hookups, and other 50-amp loads. The weather-resistant box features a spring-lock cover and pad-lockable design for added security.
Highlights
- Suitable for copper conductors only
- Metal spring-lock button secures the cover in place
- Anti-theft: blank holes allow installation of a padlock

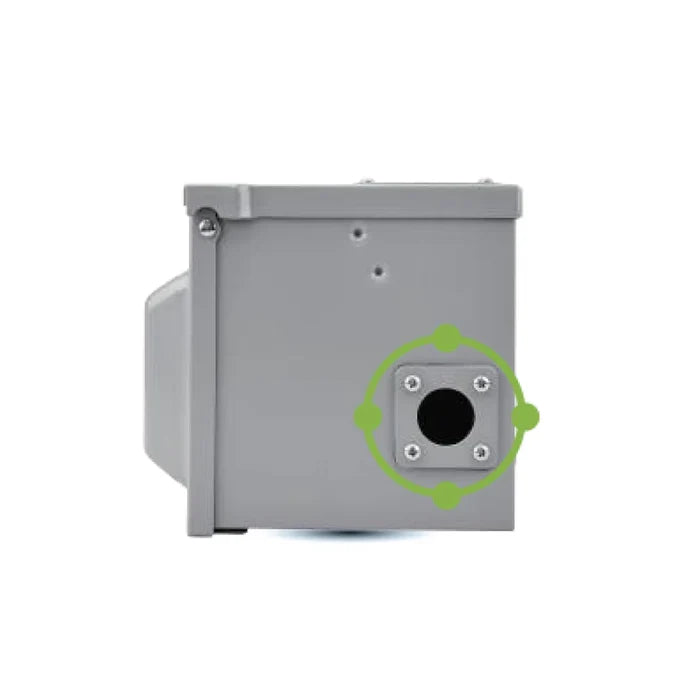

- 4 pre-drilled holes—mount in any direction

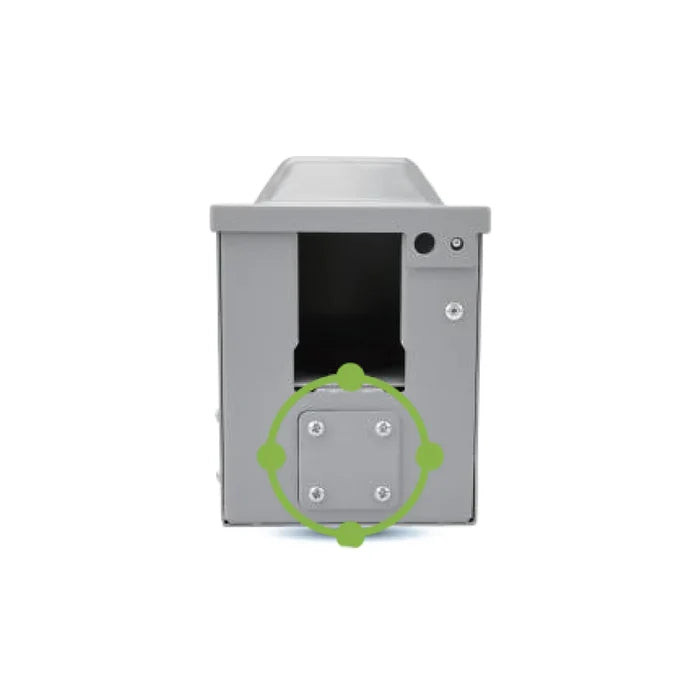

- Includes 3 knockout covers: 1/2", 3/4", and 1"
- Conductor size range: 4 AWG – 8 AWG
Specifications
| NEMA Type | 14-50R (3-pole, 4-wire grounding) |
| Amperage | 50A |
| Voltage | 125/250V |
| Wiring | 4 wires: 2 × Hot (Load), 1 × Neutral, 1 × Ground |
| Conductor Material | Copper only |
| Conductor Size | 4–8 AWG |
| Enclosure | Metal, weather-resistant; spring-lock cover; padlockable |
| Operating Temp | −20°C to +85°C |
| Storage Temp | −20°C to +60°C |
| Approx. Size | 17.5 × 13.5 × 15.5 cm |
| Applications | Level-2 EV charging (plug-in EVSE), RV, ranges and other heavy appliances |
| Compliance | NEMA 14-50; ETL listed |
Documents
EV-14-50-R Spec Sheet
EV-14-50-R Instruction Manual
