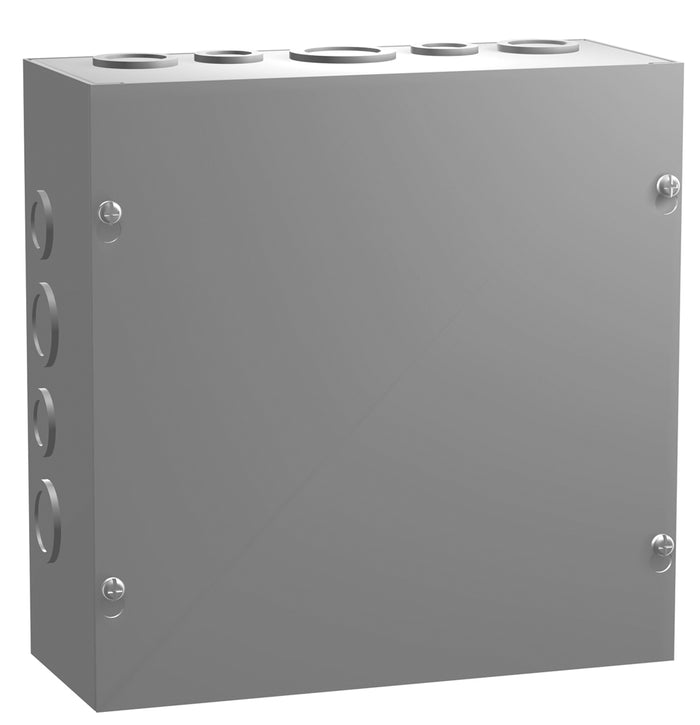

Type 1 Mild Steel Junction Box CSKO Series
Screw Cover and w/ Knockouts 10 in x 10 in x 6 in
Application
- Designed for general purpose indoor commercial use as a junction, pull or switch box.
Standards
- UL-50 Type 1
- CSA Type 1
- Complies with:
- NEMA Type 1
- IEC 60529, IP20
Construction
- Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
- Flat steel covers fastened with plated steel screws.
- Keyhole slots permit cover to be lifted off without removing screws entirely.
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
| Size H x W x D | 10 in x 10 in x 6 in (254 mm x 254 mm x 152 mm) |
|---|---|
| Shipping Weight | 8 lbs (3.63 kg) |
| UNSPSC | 39121324 |
| UPC | 623980360768 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
