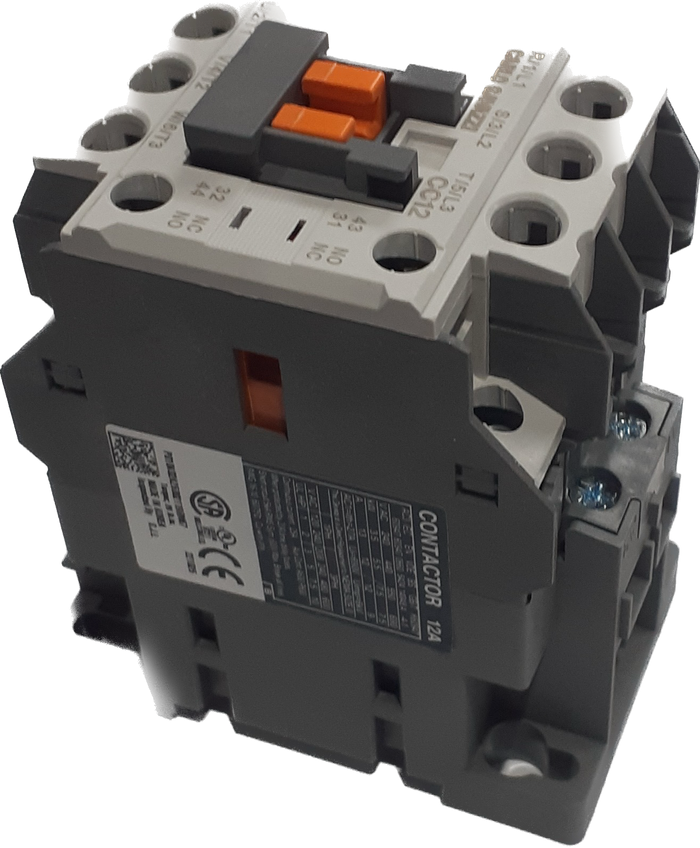

3P CONT S 120V 50/60Hz 1NO1NC
| Manufacturer Part Number | CC12SA120 |
|---|---|
| Item Number | CC12SA120 |
| Manufacturer | Carlo Gavazzi |
| Product Series | CC |
| Family Series | Carlo Gavazzi Contactors, CC Series |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contacts | 1NO, 1NC |
| Termination | Screw |
| General Purpose (AC1) | 12 A |
| UL Motor Switching (AC3) | 12 A |
| Max HP 120V 1PH | 0.75 hp |
| Max HP 230/240V 1PH | 2 hp |
| Max HP 200/208V 3PH | 3 hp |
| Max HP 230/240V 3PH | 5 hp |
| Max HP 460/480V 3PH | 7.5 hp |
| Max HP 575/600V 3PH | 10 hp |
| Approvals | CSA, cULus, UL |
| RoHS | Yes |
| Net Weight | 0.74 lbs |
| Gross Weight | 0.785 lbs |
